034 Motorsport Upper & Lower Dogbone Mount Insert Audi / VW MQB / MQB EVO

034 Motorsport Billet Aluminum Lower Dogbone Mount Insert Audi / VW MQB, MQB EVO

The 034Motorsport Billet Aluminum MQB Lower Dogbone Mount Insert for Volkswagen & Audi MQB And MQB EVO vehicles is designed to fill the large void in the factory dogbone mount, and limit drivetrain movement without sacrificing ride quality or introducing excessive additional noise, vibration, or harshness into the cabin. We highly recommend installing this with the Billet Aluminum MQB Upper Dogbone Mount Insert (patent pending). The MQB Upper Dogbone Mount prevents the puck assembly from rotating in the subframe housing, which can bend the lower insert and cause premature wearing of the factory rubber in the mount. Click the check box below to include the MQB Upper Dogbone Mount in your order.

The MQB Upper Dogbone Mount prevents the puck assembly from rotating in the subframe housing, which can bend the lower insert and cause premature wearing of the factory rubber in the mount.


Please Note: The Billet Aluminum MQB Upper Dogbone Mount Insert is included in our Billet Spherical Dogbone Mounts for the 8V/8S Audi A3/S3/TT/TTS & MkVII VW Golf/GTI/R and for the 8V.5/8S Audi RS3/TTRS.

SELECT THE CORRECT VERSION: Some MQB models are equipped with a different factory dogbone mount. To ensure fitment on your vehicle, please visually verify the mount you have using this guide, then select the correct insert below.

MQB LOWER DOGBONE MOUNT INSERT

This precision-machined billet aluminum insert is designed to fill the large voids in the factory dogbone mount, and limit transmission and engine movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. By filling the void in the factory mount, this insert eliminates the associated slop and ensures that you're experiencing crisper shifts and a more direct, connected driving experience.

Engineered to work in unison with the factory rubber mount and Upper Dogbone Insert, this insert was designed using CAD software and thoroughly tested and refined to provide noticeable slop reduction without introducing excessive noise or vibration into the cabin, which is common with lesser designs. Unlike polyurethane insert options on the market, this billet aluminum part will not pack and wear over time, and guarantees long-lasting performance.

Please Note: Some MQB models are equipped with a different factory dogbone mount. To ensure fitment on your vehicle, please visually verify the mount you have using this guide, then select the Version 1 or Version 2 insert before adding the item to your cart.

INSTALLATION HARDWARE:

The bolts used to secure the Dogbone Mount Inserts are one-time use torque to yield (TTY) bolts per VW/Audi. This means that as these bolts are tightened, they stretch slightly and become permanently elongated. 034Motorsport includes new OEM hardware with the Dogbone Mount Inserts.

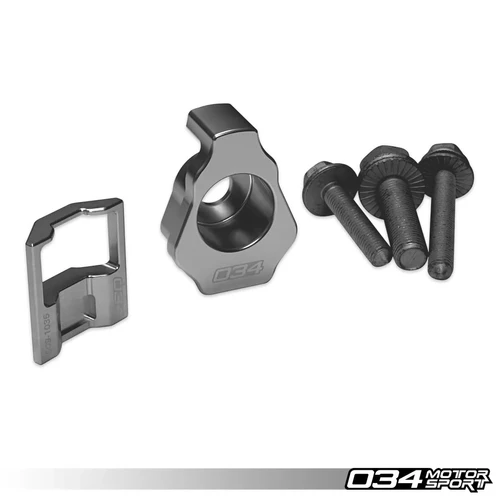

WHAT’S INCLUDED:

• Billet Upper Dogbone Insert
• Version 1 or Version 2 Lower Dogbone Mount Insert
• New OEM TTY Installation Hardware

Features:

• T6-6061 Billet Aluminum Construction
• Clear Anodized Finish for Durability
• Engineered to Fill Void In Factory Transmission Mount
• Drastically Reduces Transmission Movement During Shifting & Deceleration
• Improves Shifting Feel, Resulting in Crisper Shifts
• Virtually No Additional NVH Transfer Inside Cabin
• Easy, Straightforward Installation Takes Minutes!
• Lifetime Warranty for Original Purchaser



MQB UPPER DOGBONE MOUNT INSERT

The 034Motorsport MQB Upper Dogbone Mount Insert (patent pending) is required for Volkswagen & Audi MQB And MQB EVO vehicles using an aftermarket dogbone mount and dogbone mount insert. Aggressive driving that causes violent drivetrain movement, such as burn-outs that induce wheel-hop, will cause the upper and lower dogbone mounts to exert a bending moment on the dogbone mount arm, causing it to bend, and in some cases fail. When this failure occurs, the bottom of the engine is unconstrained and the engine will cause damage to other components in the engine bay. The 034Motorsport MQB Upper Dogbone Mount Insert eliminates these bending forces, allowing the dogbone mount to perform as designed during these violent events.

Features:

• T6-6061 Billet Aluminum Construction
• Clear Anodized Finish for Durability
• Prevents Lower Insert From Bending
• Prevents Billet Dogbone Arm From Bending
• Engineered to Fill Upper Void In Factory Transmission Mount
• Drastically Reduces Transmission Movement During Shifting & Deceleration
• Improves Shifting Feel, Resulting in Crisper Shifts
• Virtually No Additional NVH Transfer Inside Cabin
• Easy, Straightforward Installation Takes Minutes!
• Lifetime Warranty for Original Purchaser

Audi A3 8V 2.0 TFSI

Audi S3 8V 2.0 TFSI

Audi S3 8Y 2.0 TSI
Audi TT 8S 2.0 TFSI
Audi TTS 8S 2.0 TFSI

Audi RS3 8V / 8.5V 2.5 TFSI

Audi RS3 8Y 2.5 TFSI

Audi TTRS 8S 2.5 TFSI

Volkswagen Golf 7 GTI
Volkswagen Golf 7 R
