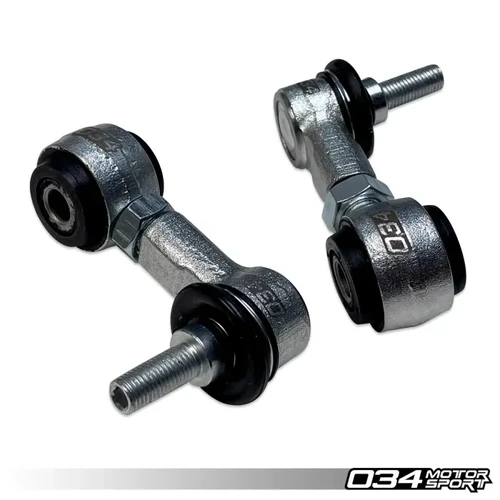

034 Motorsport Dynamic+ Rear Sway Bar End Link Kit Audi A4/RS4/S5 B8 A6/A7 C7

034 Motorsport Dynamic+ Rear Sway Bar End Link Kit Audi A4/RS4/S5 B8 A6/A7 C7

Replace your flimsy, imprecise OEM sway bar end links with the performance engineered Dynamic+ Adjustable Rear Sway Bar End Link Kit from 034Motorsport for the B8/8.5 Audi A4/S4, A5/S5, Q5/SQ5 & C7/C7.5 A6/S6/RS6, A7/S7/RS7. Designed to improve handling, road feel, and steering response, 034Motorsport's Dynamic+ Adjustable Rear Sway Bar End Link Kit allows for uncompromised transfer of suspension energy and movement to the sway bar.

With its adjustable length design, the 034Motorsport Adjustable Rear Sway Bar End Link Kit allows for lowered vehicles to maintain proper preload on the sway bar. Please Note: For lowered vehicles, always check all clearances over the full articulation of the suspension in order to identify possible interference. We recommend running 034Motorsport suspension components, as they have been designed and tested to work together, without interference.


The 034Motorsport Dynamic+ Adjustable Rear Sway Bar End Link Kit uses high-misalignment ball joints, ensuring that the end links do not bind as the suspension articulates. The threaded shaft diameter has also been maximized for increased strength.

In addition, adjustable sway bar end links allow you to adjust preload on the sway bar, as well as alleviate potential sway bar clearance issues caused by lowering your car.

WHAT IS SWAY BAR PRELOAD?

When a sway bar is preloaded, it means that it is already twisted when the car is at rest, and it’s trying to roll the car to one side because of this. This will lead to asymmetric behaviour and the car will favor tuning one way versus the other.

Preload is detectable when the car is at ride-height on a flat surface, and removal of an end link is difficult because the sway bar is already twisted and applying force on the bolt, or installing the end link is difficult because the bar needs to be twisted to insert the bolt through the hole in the sway bar. With equal-length non-adjustable sway bar end links, removing preload is not possible.

By utilizing our 034Motorsport adjustable end links, the lengths of each end link can be adjusted so that the end link can be easily installed at ride-height without needing to twist the bar to get it to fit. Zero preload provides symmetrical handling in right and left turns.

FEATURES:

• Performance Adjustable Sway Bar End Links Utilizing Heavy Duty Ball Joints and Density Line Bushings
• Offset Spacer Keeps End Link Vertical When Changing Stiffness Setting of Sway Bar
• Zinc Plated Steel for Corrosion Resistance
• Fully Vulcanized Rubber for Strength and Durability
• Maximized Diameter of Threads for Increased Strength
• OEM+ Quality with Adjustability
• Will Not Break Like the OE Plastic End Links
• Quieter with Less Maintenance than Spherical Motorsport End Links
• +/- 5mm of Adjustability (10mm Total Adjustment Range) Per End Link
• Direct Drop-In Replacement for Factory End Links
• Sold In Pairs

WHAT’S INCLUDED

• 1x Pair 034Motorsport Dynamic+ Rear End Links

Audi A4 B8 3.0 TFSI
Audi S4 B8 3.0 TFSI
Audi S5 B8 3.0 TFSI
Audi A5 B8 3.0 TFSI

Audi Q5 8R 3.0 TFSI

Audi SQ5 8R 3.0 TFSI

Audi A4 B8 2.0 TFSI

Audi A5 B8 2.0 TFSI

Audi Q5 8R 2.0 TFSI

Audi RS4 B8 4.2 FSI
Audi RS5 B8 4.2 FSI

Audi A6 C7 3.0 TFSI

Audi A7 C7 3.0 TFSI

Audi S6 C7 4.0 TFSI

Audi S7 C7 4.0 TFSI

AUDI RS7 C7 4.0 TFSI

AUDI RS6 C7 4.0 TFSI

AUDI RS6 C8 4.0 TFSI

AUDI S4 B9 3.0 TFSI

AUDI S5 B9 3.0 TFSI

Audi RS5 B9 2.9 TFSI

AUDI A4 B9 2.0 TFSI

AUDI A5 B9 2.0 TFSI

Audi S8 D4 4.0 TFSI

Audi A8 D4 3.0 TFSI

Audi Q5 B9 2.0 TFSI
