Wagner Tuning Comp. Intercooler Kit EVO3 BMW F20-22 N55

Wagner Tuning Intercooler Kit EVO 3 BMW F20 F30 120i, 228i, M2, 335i, 420i, 428i 200001144

COMPETITION INTERCOOLER KIT EVO3 for BMW F20/21/22 M135i &M235i

The BMW Competition Intercooler Kit EVO III has the following core dimensions (510mm x 345mm x 180mm / stepped, 23,56L)(20Inch x 13,6Inch x 7,09Inch / stepped, 1437,7Inch3) . The high performance intercooler core provides a 165% larger frontal area and 223% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. The stock click connections have been eleminated and increased to a connection diameter of Ø65mm/2,56Inch for inlet and Ø76mm/3Inch for outlet, so this kit comes with reinforced silicone hoses as well as 3 aluminum chargepipe. The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it ́s size the weight of the complete intercooler is only 13,8kg.

This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, including adjusted cross member, simple exchange of stock mounted parts. Easy installation, only some little adjustments at the plastic cooler support are necessary. All of our products undergo rigorous quality control.

Dimensions stock intercooler:
510mm x 130mm x 110mm / 20Inch x 5,1Inch x 4,3Inch
V=7,3 Liter / 445,3 Inch3
A=663 cm2 / 102,7 Inch2

Dimensions WAGNER TUNING intercooler:
510mm x 345mm x 180mm [stepped] / 20Inch x 13,6Inch x 7,09Inch [stepped]
V=23,56 Liter / 1437,7 Inch3
A=1759,5 cm2 / 272,7 Inch2

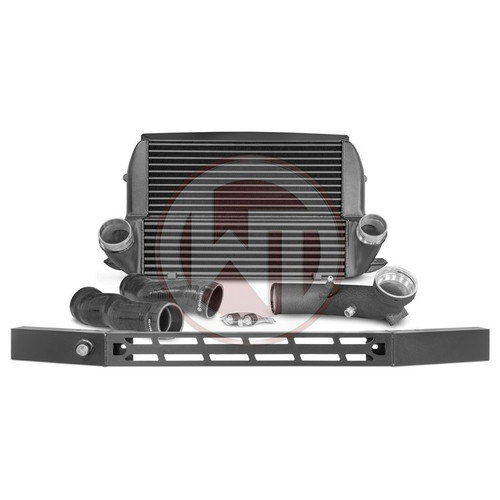

Package:

1 intercooler black
1 Ø76mm charge pipe
1 external air shroud
2 silicone hoses, HD
1 aluminum adapter
1 cross member
1 mounting material
1 installation instruction

BMW 1-Serie F20/F21 135i

BMW 2-Serie F22/F23 235i

BMW 2-Serie F22/F23 M2

BMW 2-Serie F87 235i

BMW 2-Serie F87 M2

BMW 3-Serie E90/E91/E92/E93 335i

BMW 3-Serie F30/F31/F34 335i

BMW 3-Serie F32/F32/F36 335i

BMW 3-Serie F80 335i

BMW 4-Serie F32/F33/F36 435i

BMW 4-Serie F80/F83 435i
