GFB D-Force Dedicated Diesel Electronic Boost Controller with EGT Sensor (GFB-3007) - NON VNT

INTRODUCING THE NEW GFB D-FORCE - THE DIESEL SPECIFIC ELECTRONIC BOOST CONTROLLER!
DEDICATED DIESEL BOOST CONTROLLER FOR NON-VNT (VARIABLE VANE) TURBOS

• 50psi capability
• Display boost in psi, BAR, kPa, or EGT in °F or °C
• Closed-loop boost control strategy
• 6 individually programmable boost presets
• Scramble boost feature with remote switching
• Peak boost recall feature
• Auxiliary input (active scramble/boost preset)
• Over-boost/over-temp warning
• Touch screen interface with simple menu navigation
• Choose your screen color

CONTROL AND DISPLAY BOOST PRESSURE, THE GFB D-FORCE GIVES YOU THE ULTIMATE CONTROL OF YOUR BOOST!*
(replacement part number for EGT kit GFB-3830)
The D-Force story...
EASY TO INSTALL AND USE, THE D-FORCE GIVES YOU ULTIMATE CONTROL OF YOUR BOOST PRESSURE!*
Want to adjust boost for towing? Change it if EGT gets too high? Have multiple settings for different driving conditions? Bring boost on earlier or hold it longer? The D-Force can do all of this and more! Using a unique boost control strategy, The D-Force lets you adjust the boost rise rate, peak boost, and closed-loop correction. There are 6 boost presets (plus an extra one dedicated to the scramble feature) that you can set up with different boost parameters for different driving conditions, and then activate them on-the-fly or at the press of a button.The unique scramble feature can be set up for a variety of purposes. It can raise or lower boost when activated with the screen button, or via the auxiliary input using a switch, button, or ECU output.

For example, you could use it to lower boost pressure for safety by connecting it to an existing warning light, or instantly access high boost by pressing a button or flipping a switch.

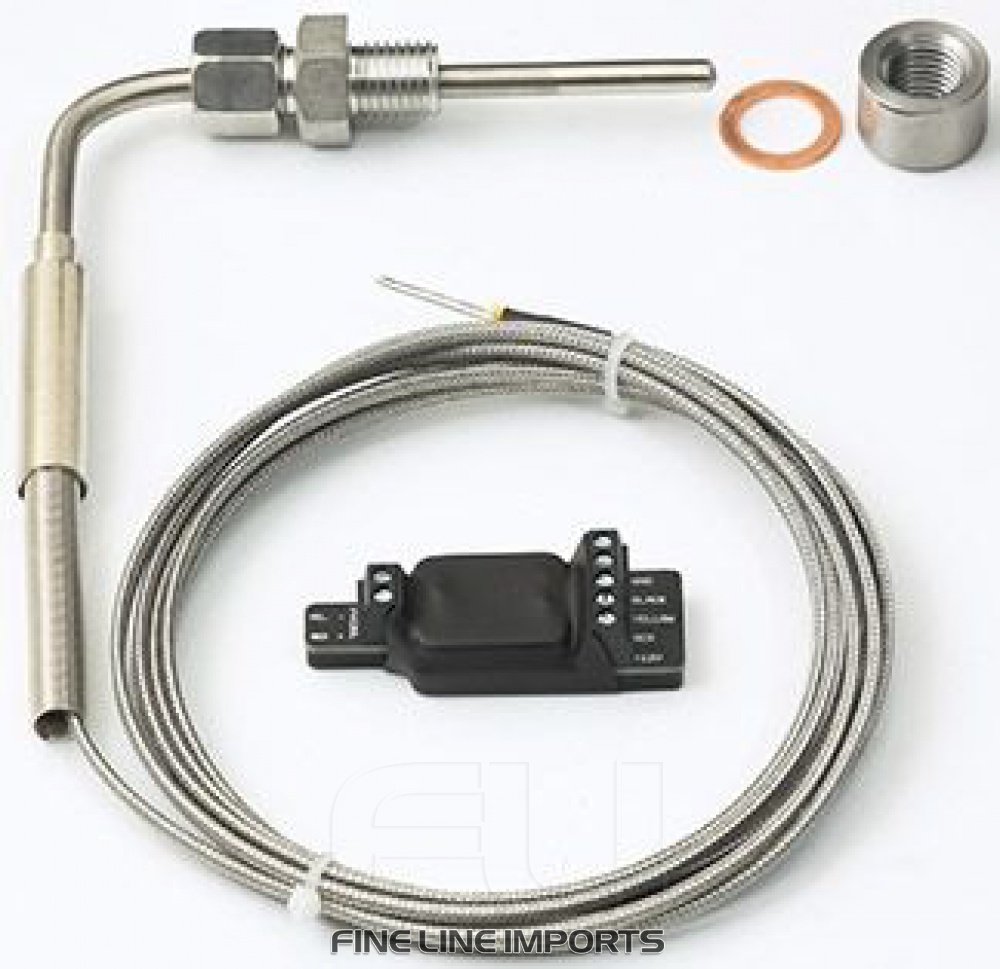

The D-Force can also display Exhaust Gas Temperature (in °F or °C) and has a user-adjustable warning. This feature requires the EGT plugin module, which includes a stainless steel EGT probe and weld-on exhaust bung, along with the module to connect it to the D-Force wiring loom. The D-Force kit is available with or without the EGT plugin module, and the module is also available separately.

The controller interface is easy to use with touch-buttons and one touch menu navigation. The boost pressure units can be displayed in psi, bar, kPa, and the peak recall feature lets you see your peak boost after each boost event.

50psi capability!
Boost gauge displays in psi, kPa, or bar - Choose the gauge pressure units to suit your preference EGT display in °F or °C – show exhaust gas temperature and set a visible flashing LED if it gets too high (EGT plugin module required, supplied with part number 3007 or separately part number 3830)

Closed-loop boost control strategy - for the fastest possible boost rise rate and minimum drop off at high RPM, the adjustable closedloop logic helps prevent boost variations that can occur in different gears, RPM ranges and atmospheric conditions

6 boost presets, individually programmable - You can program 6 different peak boost pressures and rise rates, then select on-the-fly. Use different settings for economy, power, safety, towing etc.

Scramble boost feature with remote switching capability - scramble boost activates a dedicated boost preset so that peak boost, rise rate, and closed-loop control can be specifically tailored to suit your needs when this feature is activated at the press of a button or flip of a switch. You can use scramble to lower OR increase boost pressure, AND change the spool-up rate and correction

Peak boost recall feature - Shows the peak boost achieved after each boost run

Remote input trigger - Connect the remote input wire to a switch, button, warning light or ECU output to change boost presets or activate scramble boost

Over-boost warning/cut - User adjustable warning to indicate if the boost pressure is too high and to cut the solenoid to lower boost and protect the engine

Touch screen interface with simple menu navigation - Capacitive touch screen and single-touch menu navigation makes setup exceptionally easy. Scrolling text also means you always know where you are in the menu

Choose your screen color - You can set the button illumination to any one of six different colors to match your car’s dash

D-Force kit with EGT module - Order Part # GFB-3007
EGT module kit- Order Part # GFB-3830
*Suitable only for turbos using a traditional wastegate, not VNT.

Installation Manual

Fits the following vehicles:

• Mitsubishi GALANT EA6W '96-'03 EA_ 66kw Diesel Motor Frontantrieb 1996/09-2003/10
• Mitsubishi PAJERO '90-'99 2.5L 4D56 V3_W, V2_W, V4_W 73kw Diesel Motor Allradantrieb 1990/12-1999/10
• Mitsubishi PAJERO NM/NP '00-'06 4D56T V6_W, V7_W 73kw Diesel Motor Allradantrieb 2000/04-2006/12
• Mitsubishi TRITON MK '96-'07 2.5L 4D56TD K7_T, K6_T 73kw Diesel Motor Allradantrieb 1996/06-2007/12
• Nissan PATROL Y60 2.8L & 4.2L '88-'97 IV 85kw Diesel Motor Allradantrieb 1994/01-1997/12
• Nissan PATROL Y60 2.8L & 4.2L '88-'97 Y60, GR 85kw Diesel Motor Allradantrieb 1988/09-1997/06
• Nissan PATROL Y60 2.8L & 4.2L '88-'97 Y60, GR 85kw Diesel Motor Allradantrieb 1988/11-1997/06
• Nissan PATROL Y61 TD42 '98-'03 GU,TY61 114kw Diesel Motor Allradantrieb 1999/02-2012/02
• Nissan PATROL Y61 TD42 '98-'03 GU,TY61 91kw Diesel Motor Allradantrieb 1999/02-2012/02
• Toyota HILUX KZN165 & KZN205 '97-'05 1KZ-T LN6_, LN5_, YN6_, YN5_, VZN1_, R 87kw Diesel Motor Allradantrieb 1997/08-2005/08
• Toyota HILUX KZN165 & KZN205 '97-'05 1KZ-T LN8_, RN5_, LN6_, YN6_, YN5_, LN5_, RN6_ 87kw Diesel Motor Allradantrieb 2001/11-2005/04
• Toyota LANDCRUISER HDJ100 '00-'07 _J1_ 150kw Diesel Motor Allradantrieb 1998/01-2007/08
• Toyota LANDCRUISER HDJ80 '90-'97 _J8_ 123kw Diesel Motor Allradantrieb 1990/01-1997/12
• Toyota LANDCRUISER HZN75 _J7_ 96kw Diesel Motor Allradantrieb 1990/01-1999/12
• Toyota PRADO KZJ120 1KZ-TE '02-'06 LJ12_, KZJ12_, TRJ12_, KDJ12_, GRJ12_ 92kw Diesel Motor Allradantrieb 2002/09-2009/07
• Toyota SURF KZN130 93-95 2.4L & 3.0L LN_, KZN1_, VZN1_ 66kw Diesel Motor Allradantrieb 1989/08-1998/11
• Toyota SURF KZN130 93-95 2.4L & 3.0L ZN13_, LN9_, RN1_, YN8_, LN8 92kw Diesel Motor Allradantrieb 1993/08-1997/07
